ETFE Solar Panel
Description: High-performance ETFE laminated solar panels for demanding environments. Durable, efficient, and customizable for OEM projects. ETFE is a high-strength fluorine polymer that is corrosion and stain resistant, with a non-stick self-cleaning surface.
Key Applications: Solar tracking systems, off-grid power, industrial IoT, remote monitoring stations, marine and harsh environments.
Request a Quote →Specifications — ETFE Solar Panel
Available in multiple standard sizes with custom options available
| Model | GEN72-45EF | GEN80-60EF | GEN90-60EF | GEN112-72EF | GEN115-115EF | GEN140-60EF | GEN200-30EF |
|---|---|---|---|---|---|---|---|

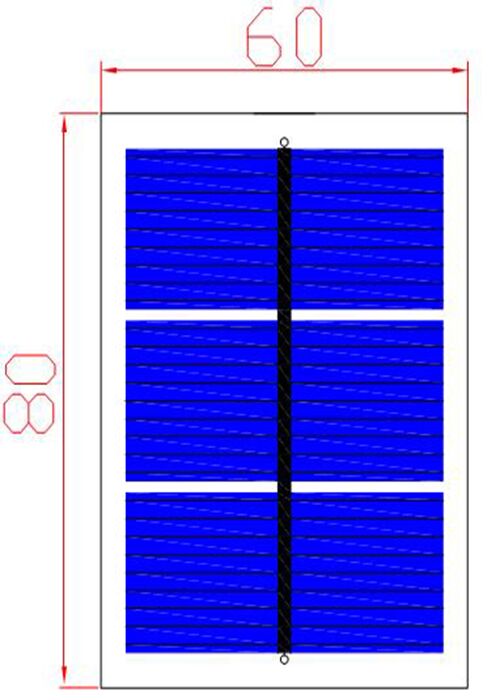

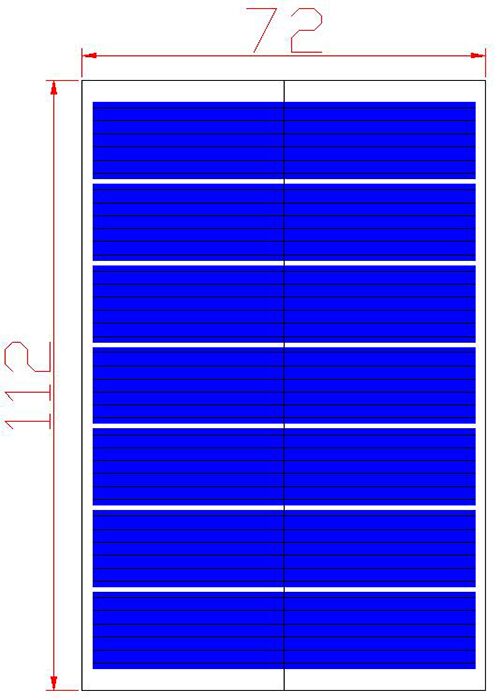

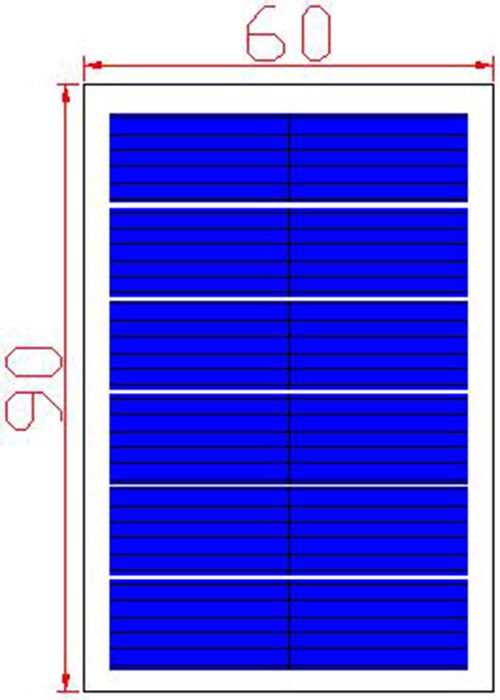

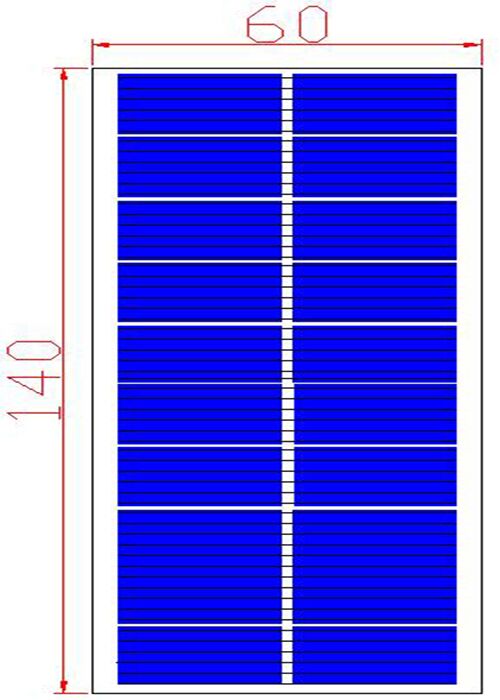

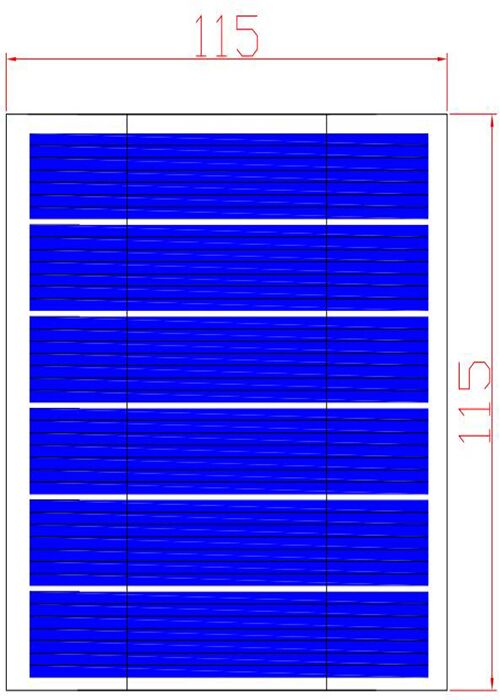

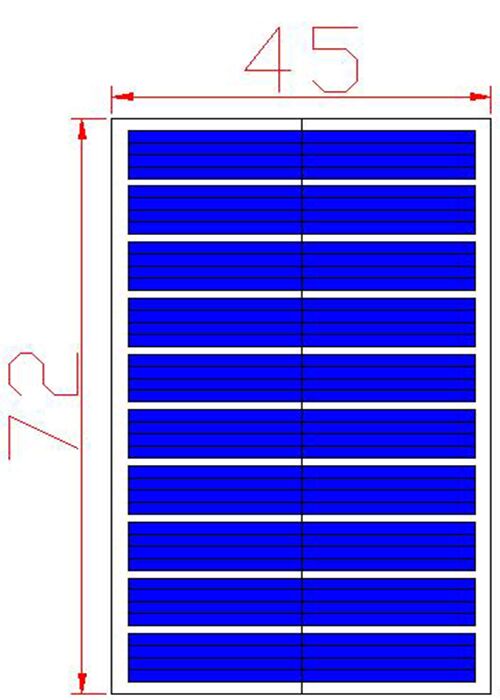

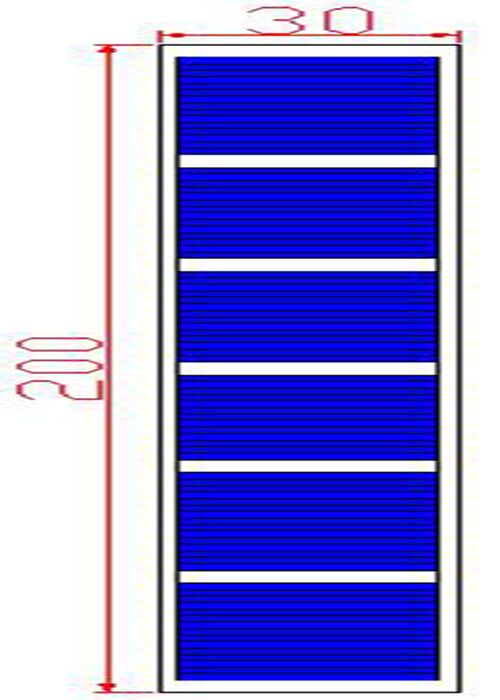

| Drawing Photo (Front) |  |  |  |  |  |  |  |
| Electrical Parameters | |||||||
| Max Power (Pm) | 0.5W | 0.72W | 0.75W | 0.91W | 1.9W | 1W | 0.9W |
| Cell Efficiency | >20% | >20% | >20% | >20% | >20% | >20% | >20% |
| Cells | 12 cells | 6 cells | 4 cells | 8 cells | 30 cells | 10 cells | 6 cells |
| Vmp | 6V | 4V | 4V | 6V | 3V | 4V | 6V |
| Imp | 80mA | 180mA | 180mA | 150mA | 630mA | 250mA | 150mA |
| Voc | 7.2V | 4.8V | 4.8V | 7.2V | 3.6V | 4.8V | 7.2V |
| Isc | 90mA | 200mA | 200mA | 170mA | 700mA | 270mA | 180mA |
| Mechanical Parameters | |||||||
| Dimension (mm) | 72×45×2.5 | 80×60×2.5 | 90×60×2.5 | 112×72×2.5 | 115×115×2.5 | 140×60×2.5 | 200×30×2.5 |
| Cell Size | 19×19mm | ||||||
| Weight | 0.08kg | 0.09kg | 0.1kg | 0.15kg | 0.2kg | 0.12kg | 0.1kg |
| Environmental & Certification | |||||||
| Max System Voltage | 600V DC (IEC) | ||||||
| Tolerance | ±3% | ||||||
| Operating Temp | -40℃~+85℃ | ||||||
| Color | White/Black | ||||||
| Warranty | 1 Year | ||||||
* Custom sizes, voltages, and connectors available upon request. Contact us for OEM/ODM solutions.
Applications
Solar Tracker Systems
ETFE solar panels power solar tracker control systems, providing reliable energy for motorized tracking mechanisms in solar farms.
Container & GPS Tracking
ETFE panels power advanced tracking and communication devices for containers, vessels, trailers, buoys and barges with self-charging technology.
Industrial IoT & Marine
Corrosion-resistant ETFE panels are ideal for pool cleaners, marine equipment, and industrial IoT devices exposed to harsh chemicals.
Features
ETFE solar panel benefits
Premium ETFE Material
Made with Japanese AGC brand ETFE film; CA CP65 and RoHS certified for highest quality and safety standards.
Low Maintenance
Corrosion and stain-resistant with a non-stick, self-cleaning surface that reduces upkeep in harsh environments.
Built to Last
Up to 3.0mm thick, offering superior durability against environmental pollution, chemicals, and extreme temperatures.
