Epoxy Resin Encapsulated Solar Panel
Description: Designed for powering solar toys and Solar STEM kits, these panels are encapsulated in epoxy resin for perfect appearance and efficiency.
Key Applications: Solar toys, educational kits, DIY projects.
Request a Quote →Specifications — Epoxy Resin Solar Panel
Available in multiple standard sizes with custom options available
| Model | GEN30-30E | GEN40-40E | GEN-D-45E | GEN55-55E | GEN60-30E | GEN70-40E |
|---|---|---|---|---|---|---|

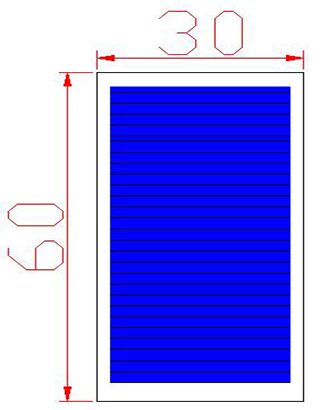

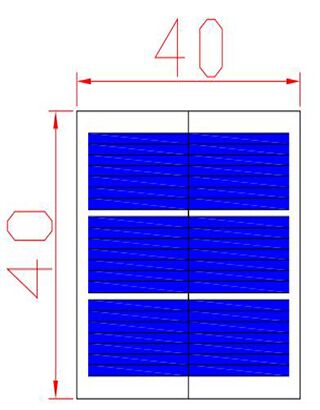

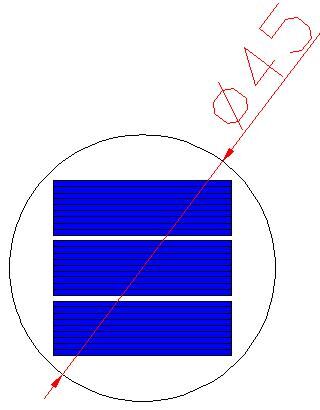

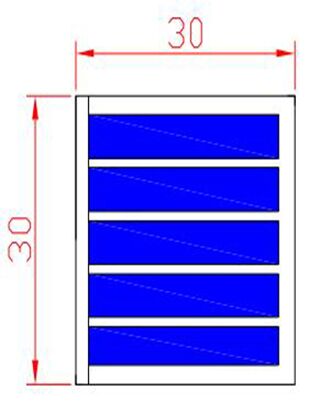

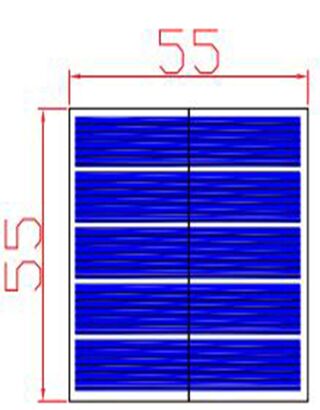

| Drawing Photo (Front) |  |  |  |  |  |  |
| Electrical Parameters | ||||||
| Max Power (Pm) | 0.1W | 0.17W | 0.15W | 0.45W | 0.24W | 0.4W |
| Cell Efficiency | >20% | >20% | >20% | >20% | >20% | >20% |
| Cells | 10 cells | 3 cells | 3 cells | 5 cells | 6 cells | 10 cells |
| Vmp | 2.5V | 1.5V | 1.5V | 2.5V | 3V | 5V |
| Imp | 40mA | 110mA | 100mA | 180mA | 80mA | 80mA |
| Voc | 2.8V | 1.8V | 1.8V | 3V | 3.6V | 6V |
| Isc | 42mA | 115mA | 108mA | 189mA | 85mA | 84mA |
| Mechanical Parameters | ||||||
| Dimension (mm) | 30×30×2.5 | 40×40×2.5 | Ø45×2.5 | 55×55×2.5 | 60×30×2.5 | 70×40×2.5 |
| Cell Type | Mono | Mono | Mono | Mono | Mono | Mono |
| Weight | 2.5g | 4.5g | 4.5g | 5.6g | 1.6g | 5.2g |
| Environmental & Certification | ||||||
| Tolerance | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Operating Temp | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | |||
| Color | Black / White | Black / White | Black / White | |||
| Warranty | 1 Year | 1 Year | 1 Year | |||
* Custom sizes, voltages, and connectors available upon request. Contact us for OEM/ODM solutions.
Applications
Solar Education DIY Kits
Epoxy solar panel perfectly powers STEM educational kits, offering a safe, durable, and visible photovoltaic module for hands-on solar energy learning experiments and classroom projects.

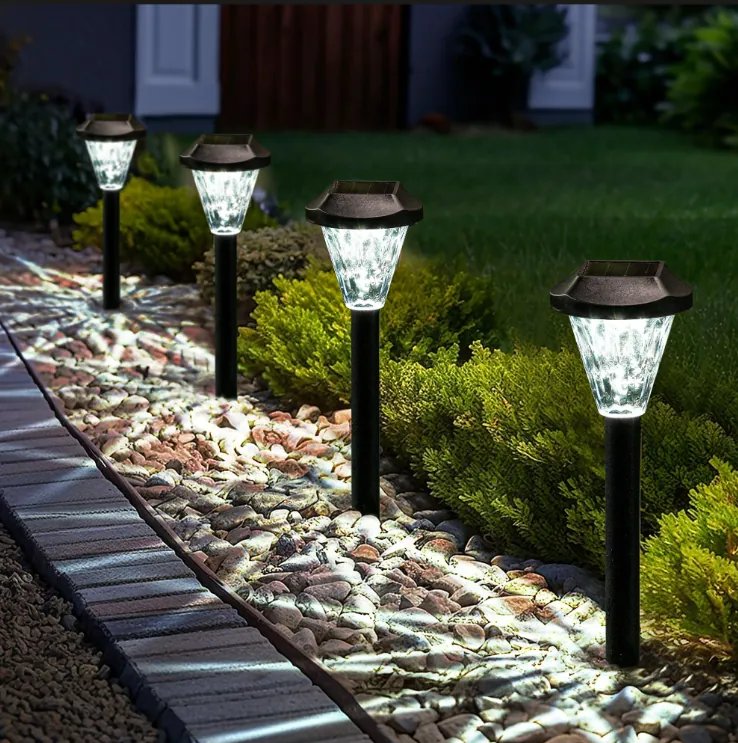

Solar Lawn LED Light
Compact epoxy resin solar panel reliably charges lawn LED lighting systems day after day, providing eco-friendly garden illumination without wiring or electricity costs.

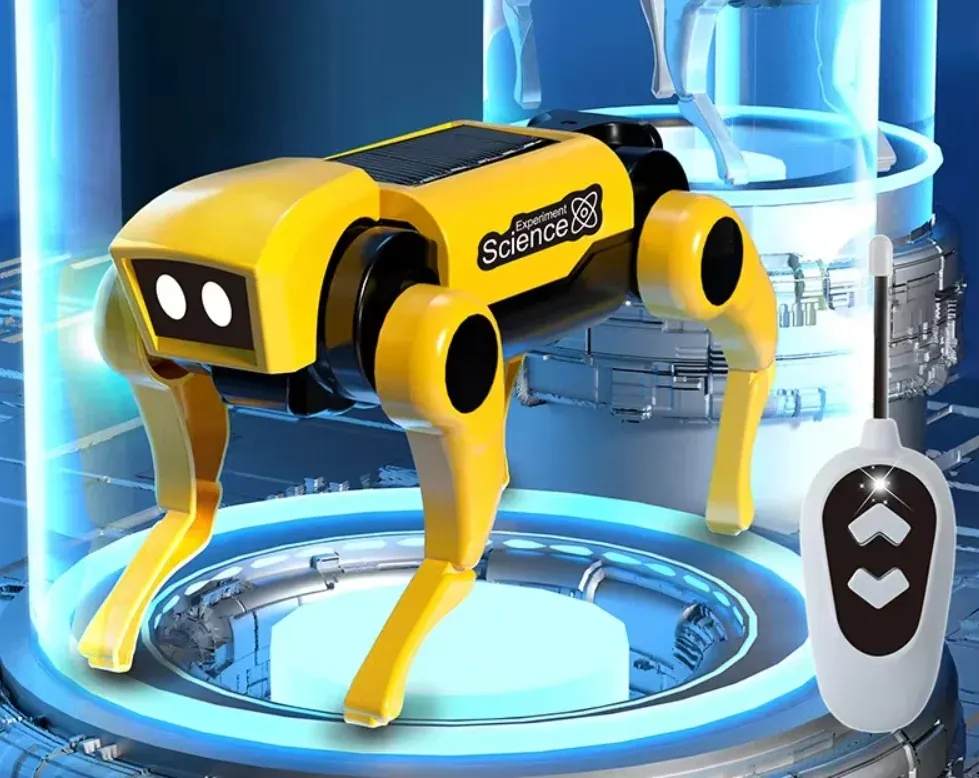

Solar Toy
Epoxy encapsulated solar cells integrate seamlessly into interactive solar toys, delivering clean renewable energy that brings motorized models and light-up gadgets to life.
Features
Epoxy resin solar panel owns its unique highlights

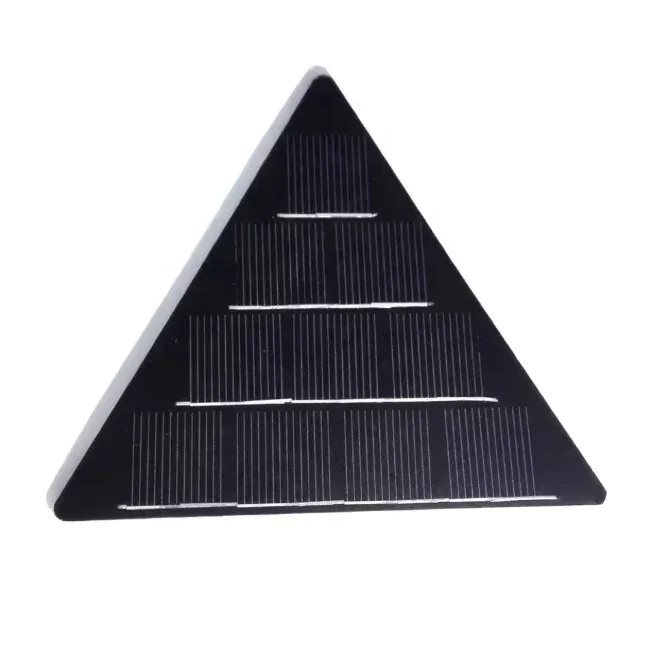

Excellent glossiness, aesthetic appearance
Epoxy Solar Panel delivers a premium, high-gloss finish with superior aesthetics for outdoor power module applications.
Suitable for irregular shapes
Epoxy Solar Panel perfectly conforms to irregular shapes and complex contours of customized photovoltaic assemblies.

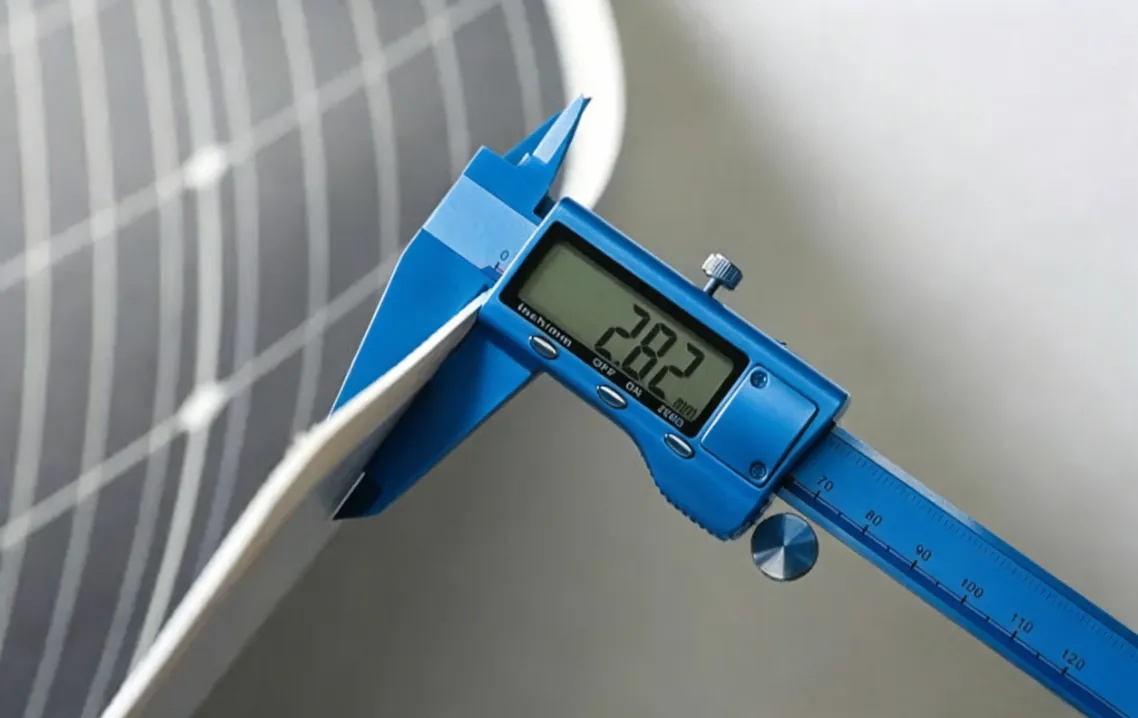

Encapsulated directly on the casing, without using a substrate
Epoxy Solar Panel features a substrate-free design that allows for direct application onto the finished product casing.
