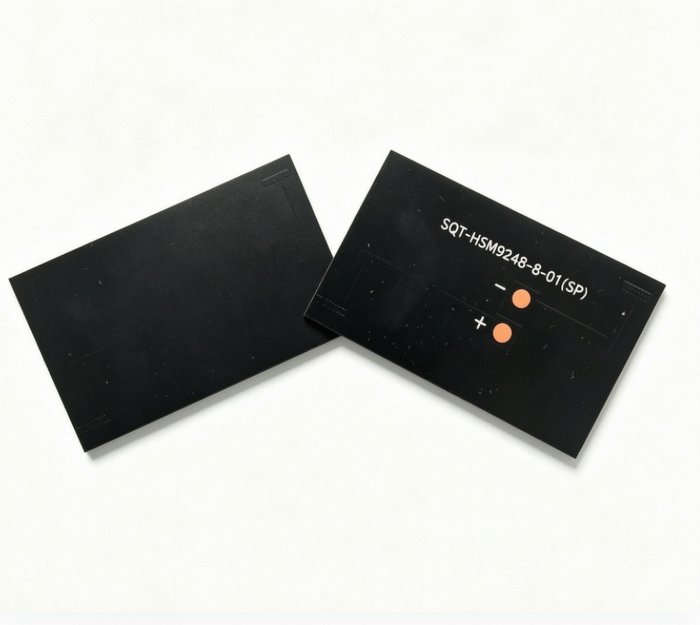

Custom BC Solar Panels 1.8W–5W
5V / 6V / 9V Output · ETFE / PVF / PET
Standard back-contact solar modules engineered for IoT sensors, smart wearables, GPS trackers and portable electronics — fully customizable size, shape & power, with zero minimum order.
Key Benefits of Our BC Solar Modules
Back-contact (BC) cells move all conductive contacts to the rear side — no front busbars to block light or crack.
Zero Front Shading
Higher power density in limited tiny space — more energy from the same footprint.
Outstanding Weak-Light Performance
Stable power output at dawn, dusk and in cloudy weather.
Lower Temperature Attenuation
Less power loss under high-temperature outdoor conditions.
Enhanced Mechanical Toughness
Resistant to vibration, thermal cycling and slight bending — fewer micro-cracks.
Standard Lamination Options: ETFE, PVF and PET
Three proven surface materials, matched to your usage environment.
ETFE (Aerospace-Grade)
Excellent UV resistance, anti-aging & self-cleaning. No yellowing or delamination for over 15 years — built for long-term unattended outdoor equipment.
PVF (Polyvinyl Fluoride)
Proven weather-resistant film with strong UV & salt-spray resistance. A reliable, cost-effective choice for outdoor, coastal and marine devices.
PET
Cost-effective option for indoor usage or sheltered semi-outdoor products with low long-term weather exposure.
Standard Model Technical Parameters
Five standard models available from stock samples. All dimensions fully customizable.
| Parameter | 1.8W 5V | 2W 6V | 3W 6V | 5W 6V | 5W 9V |
|---|---|---|---|---|---|
| Rated Max Power (Pmax) | 1.8 W | 2.0 W | 3.0 W | 5.0 W | 5.0 W |
| Rated Peak Voltage (Vmp) | 5 V | 6 V | 6 V | 6 V | 9 V |
| Rated Peak Current (Imp) | ~0.36 A | ~0.33 A | ~0.50 A | ~0.83 A | ~0.56 A |
| Open Circuit Voltage (Voc) | ~6.0 V | ~7.2 V | ~7.2 V | ~7.2 V | ~10.8 V |
| Short Circuit Current (Isc) | ~0.39 A | ~0.36 A | ~0.54 A | ~0.89 A | ~0.60 A |
| Solar Cell Type | BC Back-Contact Monocrystalline | ||||
| Standard Reference Size | Custom | Custom | Custom | Custom | Custom |
| Optional Surface Layers | ETFE / PVF / PET | ||||
| Available Shape | Rectangle + custom irregular shapes | ||||
| Operating Temperature | -40°C ~ +85°C | ||||
| Output Termination | Bare pads / custom wires / waterproof connectors | ||||
| Outdoor Service Life | 3 years | ||||
| Warranty | 1 year | ||||
| MOQ Policy | No MOQ — single sample available | ||||
| Supported Service | OEM & ODM Customization | ||||
* Standard reference sizes available from our official datasheet — request it for exact mechanical drawings.
Full One-Stop Customization Service
End-to-end customization according to your mechanical & electrical drawings.
- →Custom length, width and thickness beyond standard reference sizes
- →Irregular shapes: narrow strips, curved outlines, special cutouts for assembly
- →Adjustable Vmp voltage, matching 3.7V lithium battery, LDO and MPPT charging circuits
- →Custom terminals: bare solder pads, micro JST wires, IP67 waterproof connectors, built-in anti-reverse diodes
- →OEM & ODM available: silk-screen printing, customized packaging, private labeling
Wide Application Fields
Built for low-power, space-constrained, always-on devices.
Frequently Asked Engineering Questions
Straight answers from our engineering team.
Q1. What's the difference between ETFE, PVF and PET lamination?
ETFE is the premium outdoor material — long-term anti-UV, self-cleaning, no yellowing for 15+ years. PVF is a proven weather-resistant film with strong UV and salt-spray resistance, balancing outdoor durability and cost. PET is the economical choice for indoor or sheltered semi-outdoor products.
Q2. Can I customize power, voltage, size or shape?
Yes. We fully support customized power, output voltage, dimensions and irregular outlines. Send your installation space drawing and power demand — our engineers will design the most suitable layout for free.
Q3. Do you have a minimum order for samples?
No. We are a direct manufacturer without MOQ restrictions. You can order a single sample for laboratory testing before mass production, and we also offer flexible small-batch trial production.
Q4. Why choose BC back-contact cells for micro equipment?
BC cells eliminate the front metal grid that blocks light and can crack under bending or thermal shock. They deliver higher power density in limited space, better weak-light generation and longer service life for wearable and vibration-prone IoT devices.
Q5. Can you pre-install wires, connectors or anti-reverse diodes?
Absolutely. We can pre-solder JST micro connectors, IP67 waterproof cables, or integrate anti-reverse diodes to match your assembly needs — simplifying your workflow and lowering assembly costs.
Q6. Are these panels bendable for curved product shells?
They support slight bending with a minimum bending radius of 10× panel thickness. For large curved enclosures, we can customize segmented cell circuits and flexible substrates to avoid cell cracking.
Elevate Your Product with Custom Micro Power
Send your technical drawings, power requirements or project details — our engineering team will reply within 24 hours with a detailed quotation, dimension proposal and official technical datasheet.
Global shipping: EU · USA · Southeast Asia · Australia
