Custom Glass Solar Panel
Description: High-durability glass solar panels built for long-term performance. Ideal for residential and commercial solar installations.
Key Applications: Residential rooftops, commercial buildings, ground-mounted systems, solar farms, building-integrated photovoltaics (BIPV).
Request a Quote →Technical Specifications — Glass Solar Panel
Available in 5 standard power ratings with full customization
| Parameter | GEN-G5 | GEN-G10 | GEN-G20 | GEN-G30 | GEN-G50 |
|---|---|---|---|---|---|
| Electrical Parameters (Typical) | |||||
| Max Power (Pmax) | 0.5W – 5W | 5W – 10W | 10W – 20W | 20W – 30W | 30W – 50W |
| Operating Voltage (Vmp) | 4V – 6V | 6V – 9V | 9V – 12V | 12V – 15V | 15V – 18V |
| Operating Current (Imp) | 100 – 800mA | 800mA – 1.5A | 1.2A – 2.0A | 1.8A – 2.5A | 2.0A – 3.0A |
| Open Circuit Voltage (Voc) | 4.8V – 7.2V | 7.2V – 10.8V | 10.8V – 14.4V | 14.4V – 18V | 18V – 21.6V |
| Cell Efficiency | ≥ 21% (Monocrystalline Grade A) | ||||
| Mechanical Parameters | |||||
| Glass Thickness | 2.8mm – 3.2mm Tempered Glass | ||||
| Backsheet | White or Black TPT/PET (Customizable) | ||||
| Frame | Optional Aluminum Frame / Frameless | ||||
| Custom Size (L×W) | 20mm × 20mm up to 1200mm × 1200mm | ||||
| Custom Shape | Rectangle, Square, Round, Strip, Oval, or Custom Geometry | ||||
| Environmental & Certification | |||||
| Operating Temperature | -40°C to +85°C | ||||
| Certification | ISO 9001, CE, RoHS | ||||
| Warranty | 12 Months (Standard), Extended Available | ||||
| Lead Time | 10 – 15 Working Days | ||||
* All specifications are customizable. Contact us for your specific requirements.
Applications

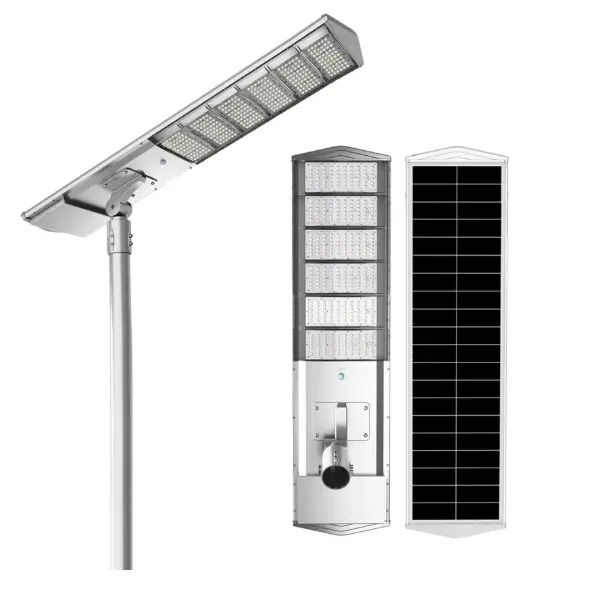

Solar Lighting
Reliable power for garden lights, streetlights, and billboard illumination.
Surveillance
Solar-powered CCTV and traffic monitoring for remote security.
Education & DIY
Custom sizes for STEM kits, experiments, and DIY solar projects.
Industrial & IoT
Powering remote sensors, IoT gateways, and control systems.
Customization Options
Every parameter can be tailored to your project

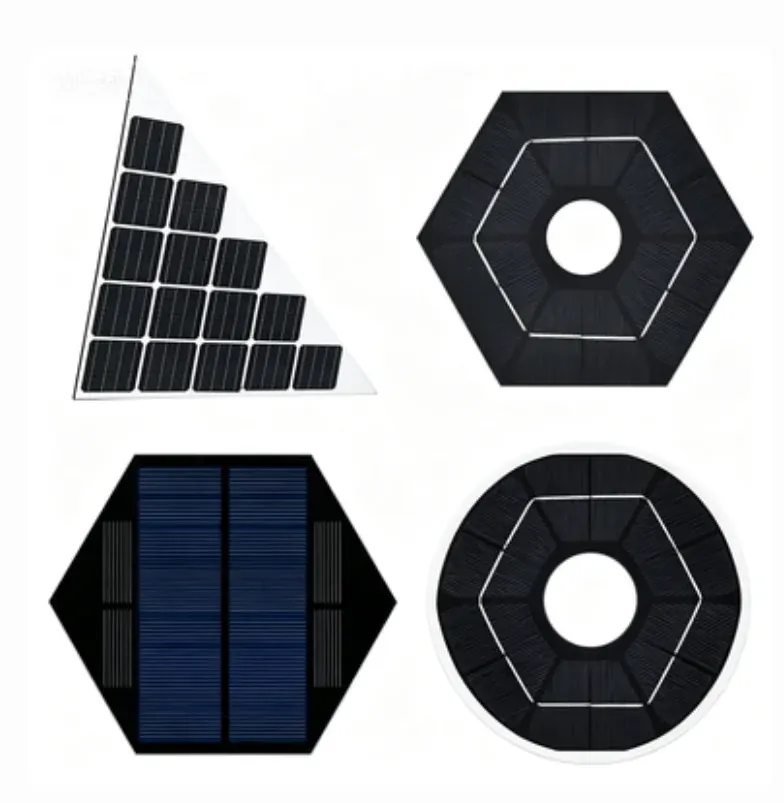

Shape & Size
Any custom shape — round, rectangular, strip, oval, or custom geometry.

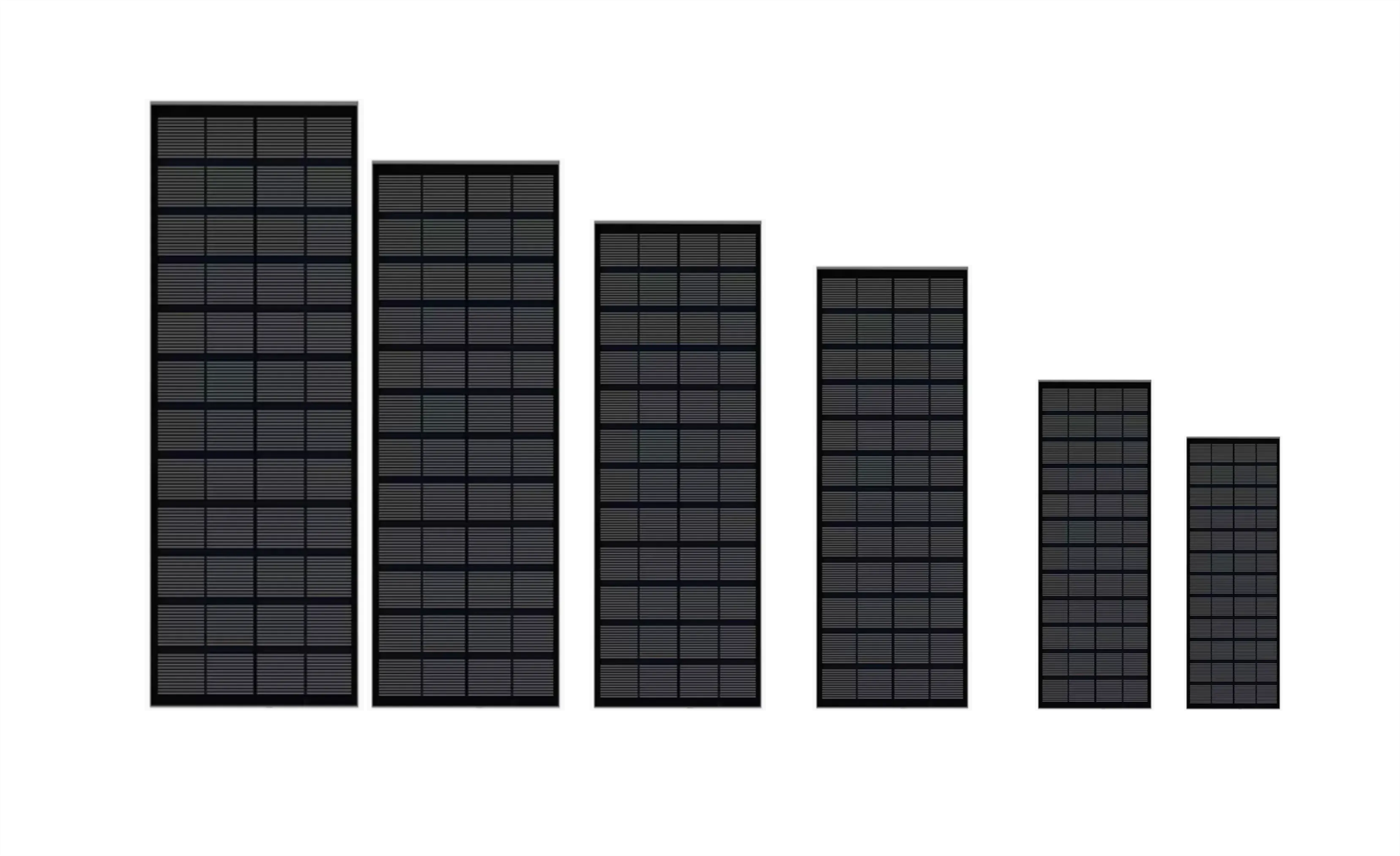

Voltage & Power
4V to 18V voltage, 0.5W to 50W power range fully customizable.

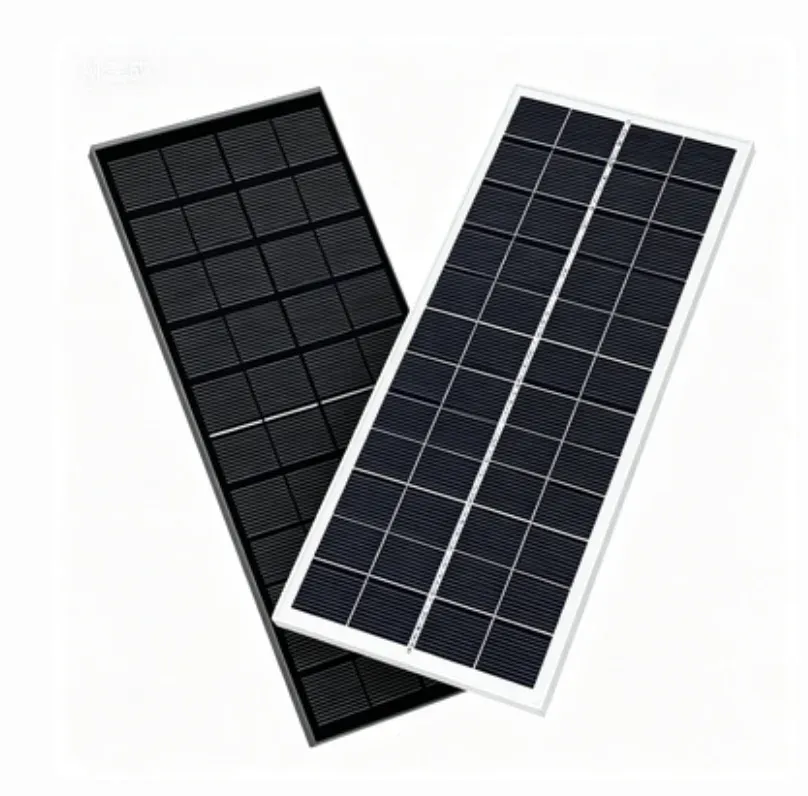

Color & Finish
White or black backsheet, aluminum frame or frameless option.

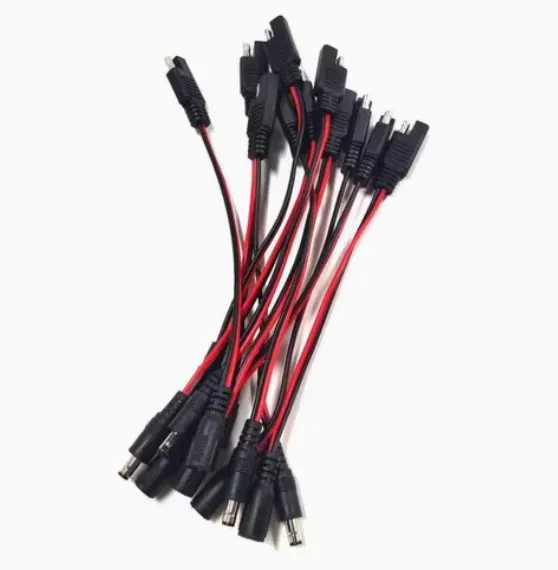

Connector & Cable
Custom wire length, connector type, and diode configuration.
