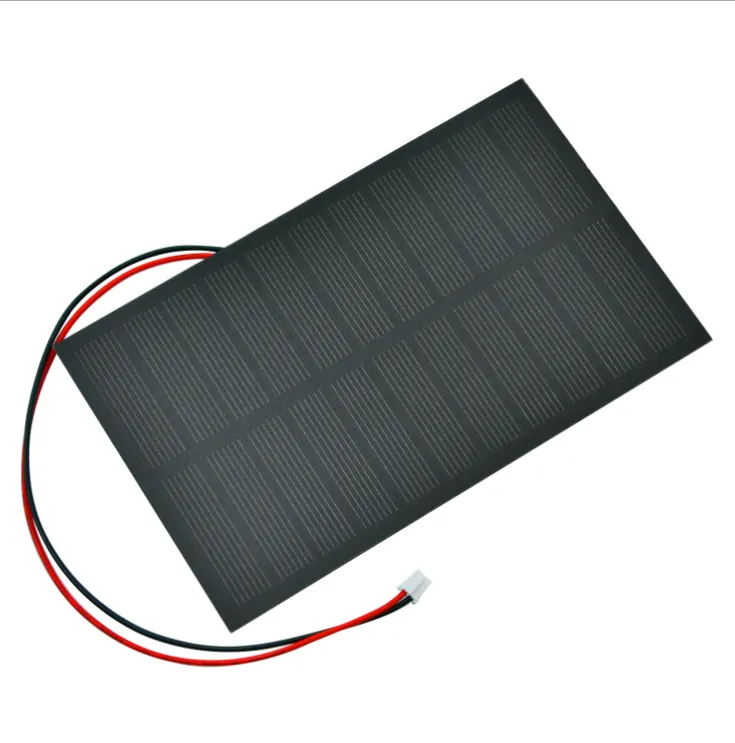

PET Solar Panel

Description: Our PET laminated solar panels are ideal for lighting applications such as solar aviation lights, solar barricade lights, and solar road studs. They also provide reliable power for solar IoT devices and fence energizers.

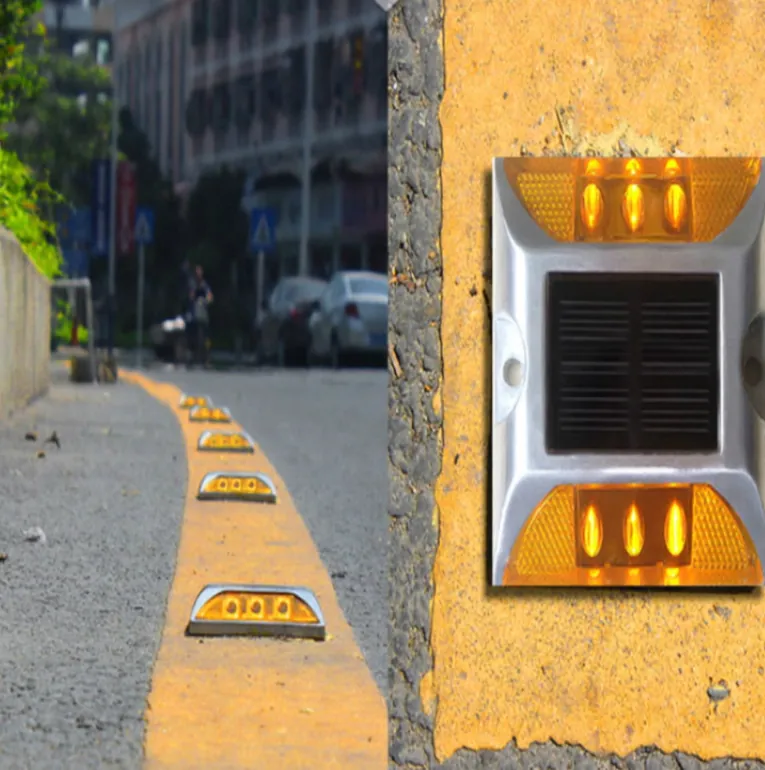

Key Applications: Solar aviation lights, barricade lights, road studs, IoT devices, fence energizers.

Model	GEN60-60P	GEN80-60P	GEN90-60P	GEN130-80P	GEN140-60P	GEN147-107P	GEN155-58P

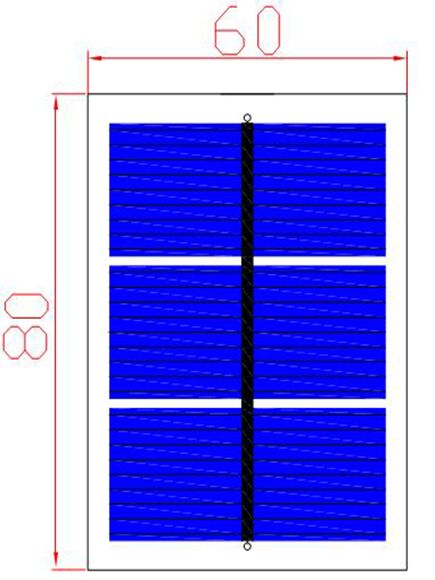

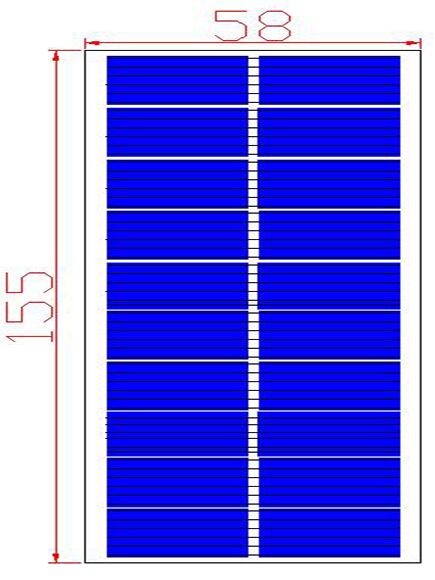

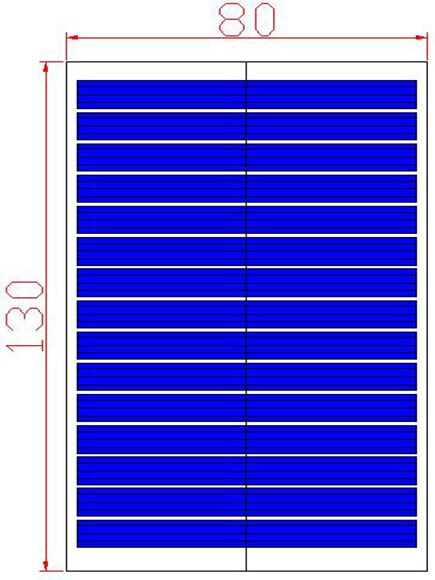

Drawing Photo (Front)
Electrical Parameters
Max Power (Pm)	0.5W	0.72W	0.75W	1.2W	1W	1.4W	1.25W
Cell Efficiency	>20%	>20%	>20%	>20%	>20%	>20%	>20%
Cells	4 cells	3 cells	6 cells	15 cells	10 cells	12 cells	6 cells
Vmp	5V	4.5V	3V	5V	4V	4.5V	4.5V
Imp	100mA	160mA	250mA	240mA	250mA	320mA	280mA
Voc	6V	5.4V	3.6V	6V	4.8V	5.4V	5.4V
Isc	110mA	180mA	270mA	260mA	270mA	350mA	310mA
Mechanical Parameters

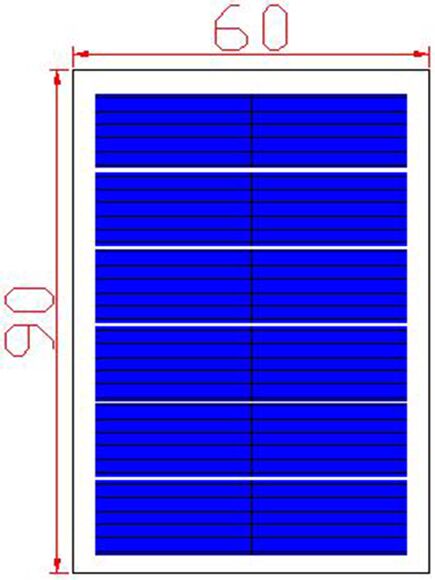

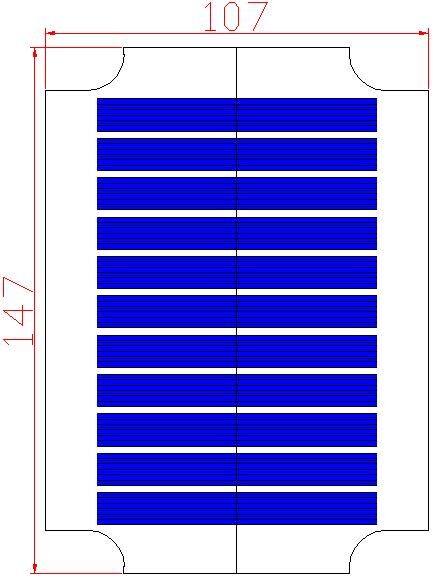

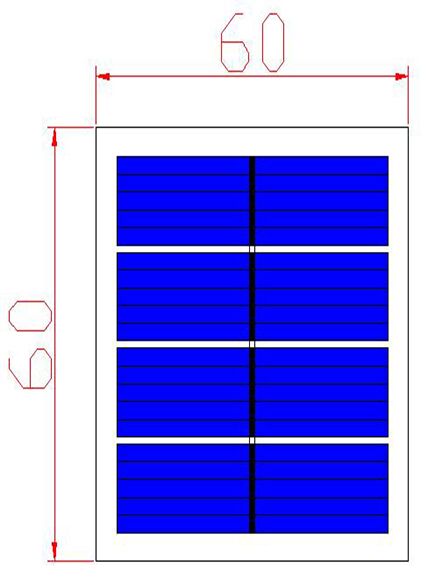

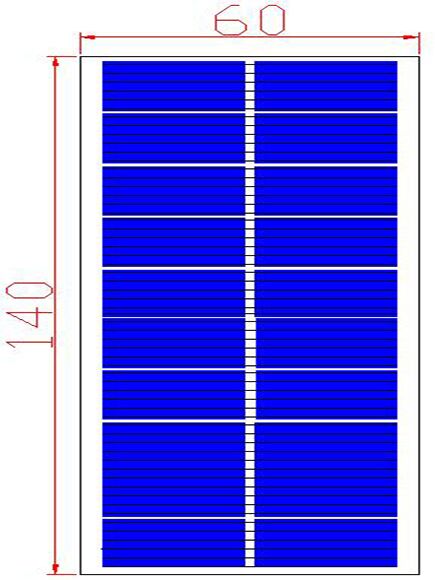

Dimension (mm)	60×60×2.5	80×60×2.5	90×60×2.5	130×80×2.5	140×60×2.5	147×107×2.5	155×58×2.5
Cell Size	19×19mm
Weight	0.08kg	0.09kg	0.1kg	0.16kg	0.15kg	0.2kg	0.12kg
Environmental & Certification
Max System Voltage	600V DC (IEC)
Tolerance	±3%
Operating Temp	-40℃~+85℃
Color	White/Black
Warranty	1 Year

* Custom sizes, voltages, and connectors available upon request. Contact us for OEM/ODM solutions.
