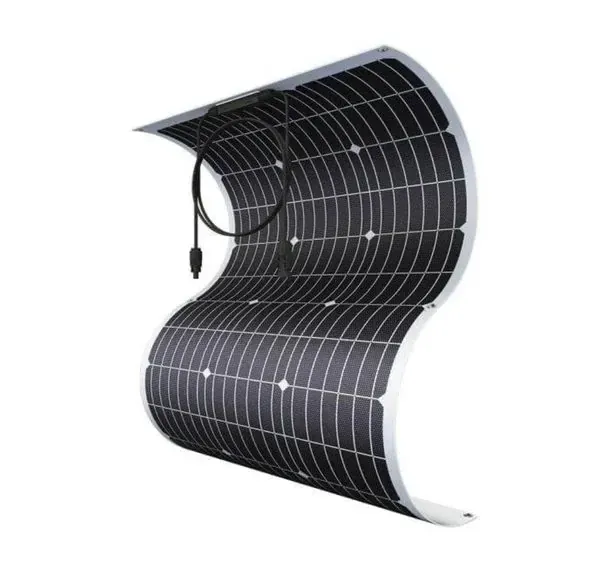

Flexible Solar Panel
Description: Our flexible solar panels are a revolutionary alternative to traditional rigid panels, providing an efficient and portable solution to power your electronic devices and vehicles on the go.
Key Applications: RVs, boats, golf cars, electric vehicles, campers, off-grid systems, irregular surfaces.
Request a Quote →Specifications — Flexible Solar Panel
Available in 7 power ratings from 45W to 170W
| Model | GEN-MN-45W | GEN-MN-70W | GEN-MN-80W | GEN-MN-100W | GEN-MN-115W | GEN-MN-140W | GEN-MN-170W |
|---|---|---|---|---|---|---|---|

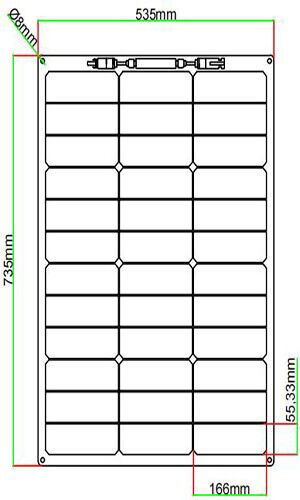

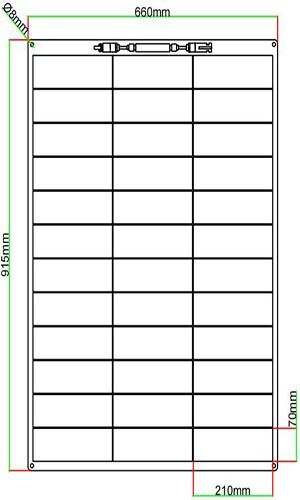

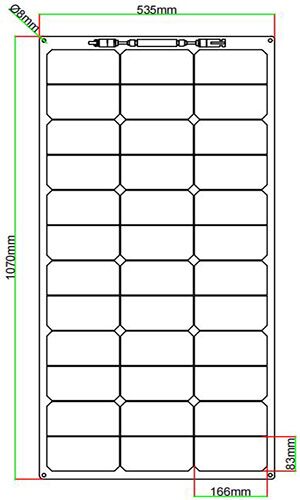

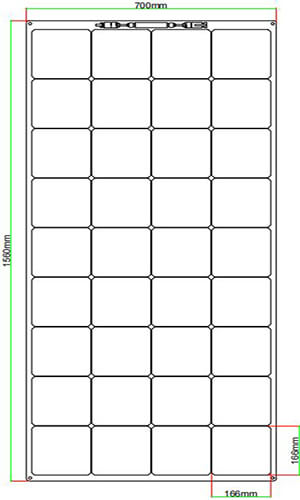

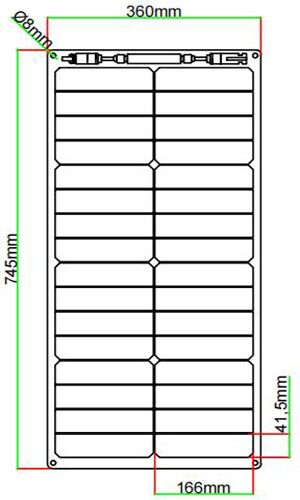

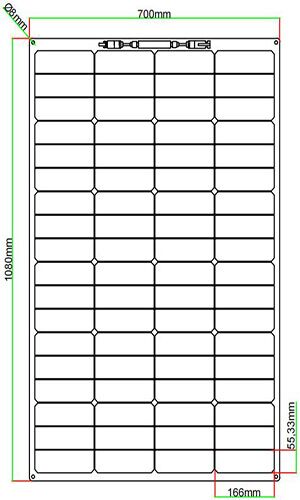

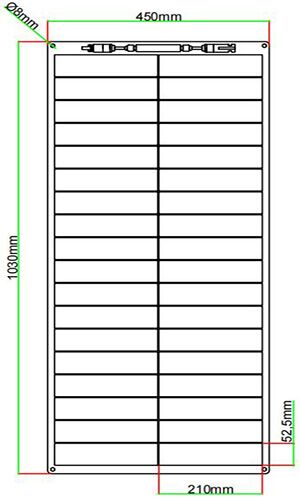

| Drawing Photo (Front) |  |  |  |  |  |  |  |
| Electrical Parameters | |||||||
| Max Power (Pm) | 45W | 70W | 80W | 100W | 115W | 140W | 170W |
| Cell Efficiency | >22% | >22% | >22% | >22% | >22% | >22% | >22% |
| Cells | 2×16 | 3×12 | 2×18 | 3×12 | 3×18 | 3×18 | 3×24 |
| Vmp | 8V | 8.3V | 8.8V | 11.6V | 11.8V | 12V | 12.2V |
| Imp | 5.6A | 8.4A | 9A | 8.6A | 9.7A | 11.7A | 13.9A |
| Voc | 9.6V | 10V | 10.5V | 14V | 14V | 14.2V | 14.5V |
| Isc | 5.9A | 8.9A | 9.5A | 9.1A | 10.3A | 12.4A | 14.8A |
| Mechanical Parameters | |||||||
| Dimension (mm) | 540×430×3 | 730×460×3 | 810×505×3 | 810×610×3 | 925×615×3 | 1050×640×3 | 1050×760×3 |
| Weight | 1.2kg | 1.6kg | 2kg | 2.5kg | 2.8kg | 3.2kg | 4kg |
| Environmental & Certification | |||||||
| Max System Voltage | 600V DC (IEC) | ||||||
| Tolerance | ±3% | ||||||
| Operating Temp | -40℃~+85℃ | ||||||
| Surface | ETFE | ||||||
| Warranty | 5 Years | ||||||
* Custom sizes, voltages, and connectors available upon request. Contact us for OEM/ODM solutions.
Applications

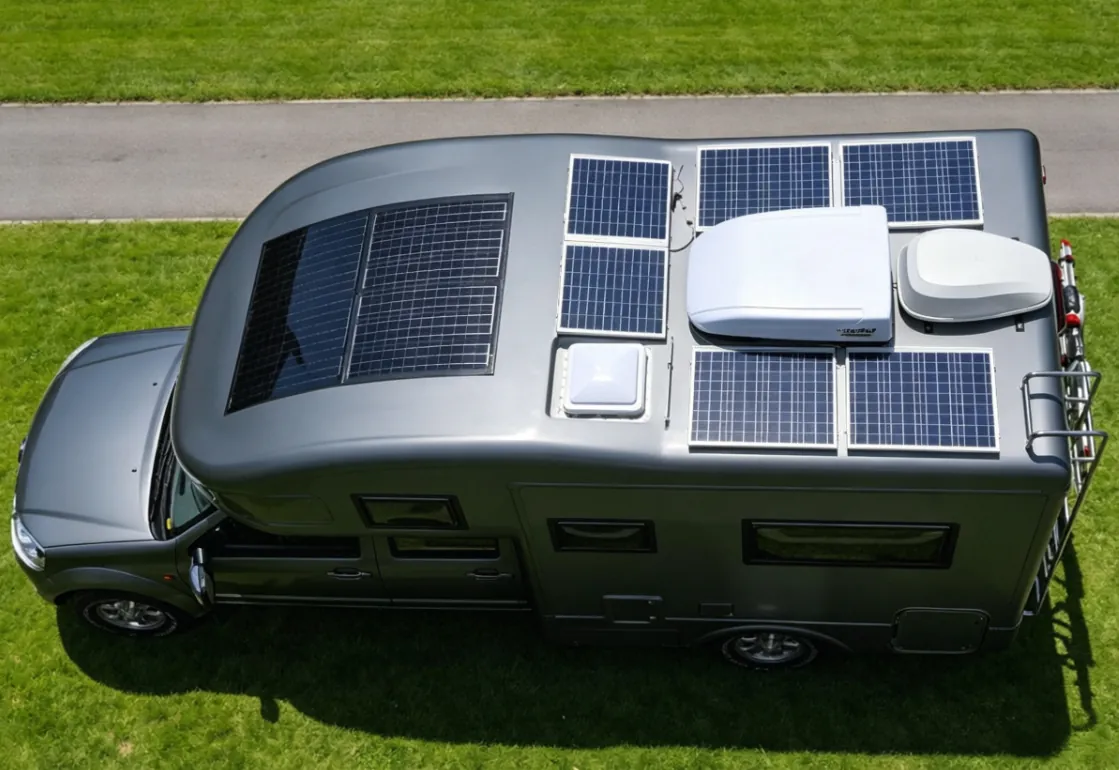

RV & Camper
Ultra-thin flexible panels are ideal for camper vans, tents, and motorhomes, conforming to curved roofs for seamless installation.

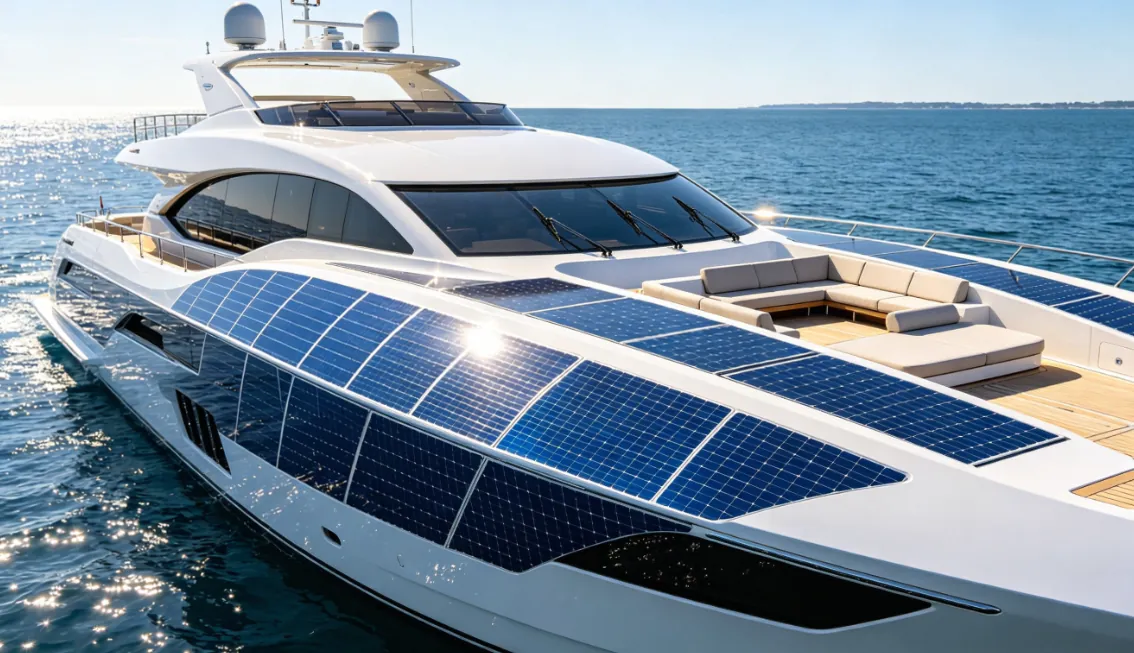

Marine & Boat
Salt spray resistant ETFE surface makes these panels perfect for boats, yachts, and seaside installations.

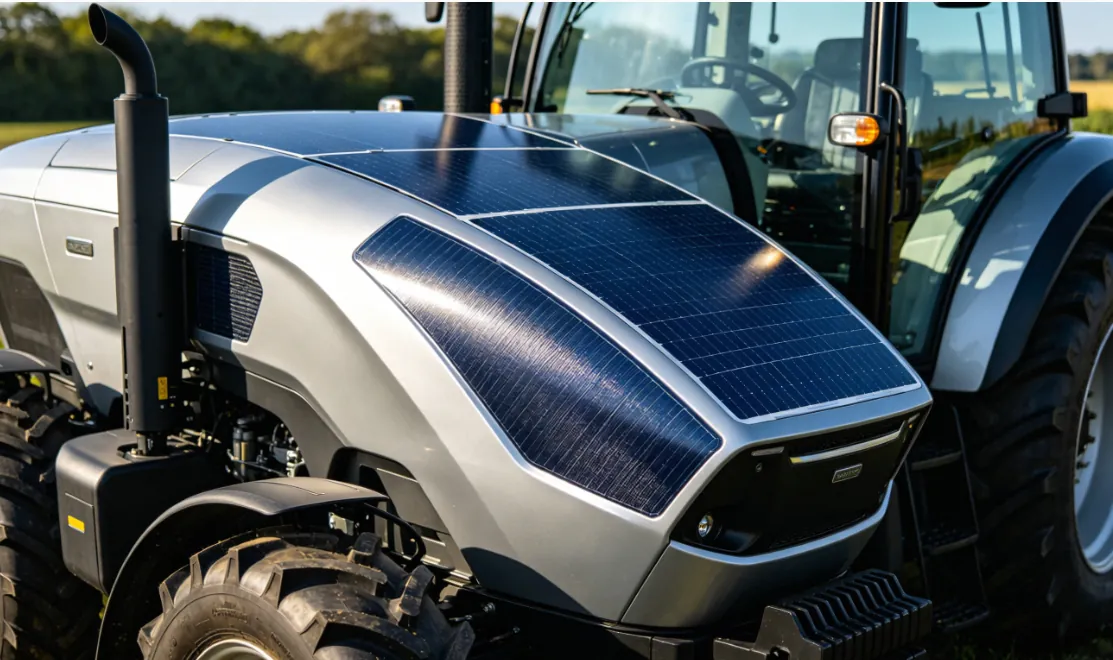

Electric Vehicle
Powerful enough to charge electric golf cars, patrol cars, and EV auxiliary battery systems on the go.
Features
Flexible solar panel benefits

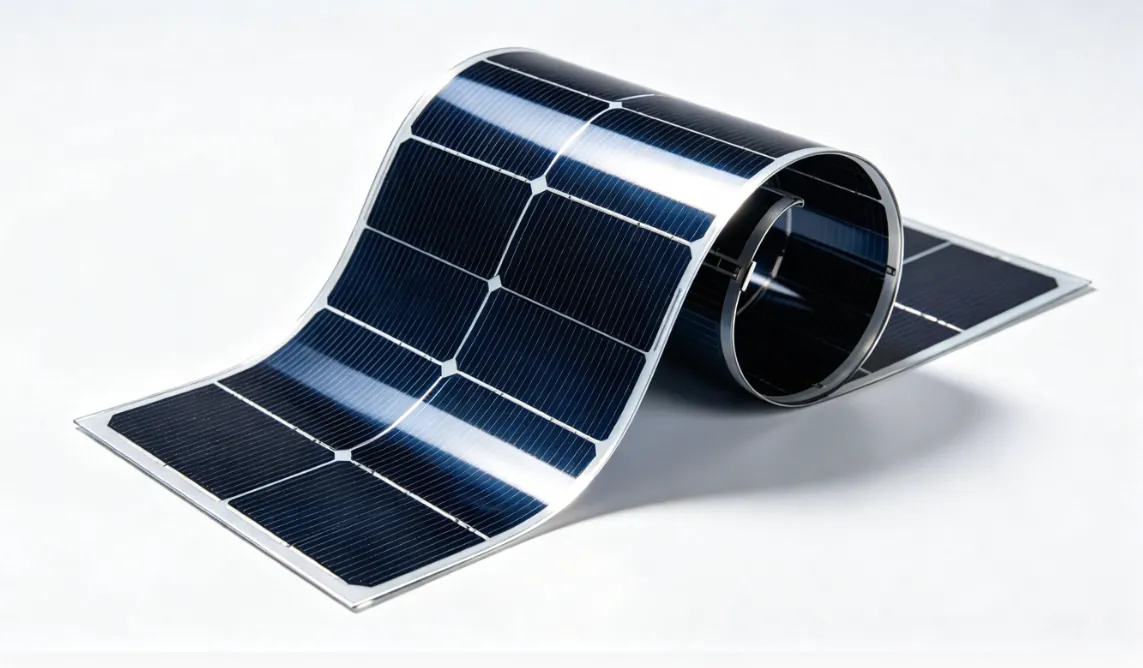

Sustainable Power
Flexible solar panels: powering a sustainable, limitless future.
Ultra-thin & Lightweight
Ultra-lightweight design with a slim 2.8mm profile.
Robust & Durable
Robust ETFE film: salt spray resistant and highly durable.
